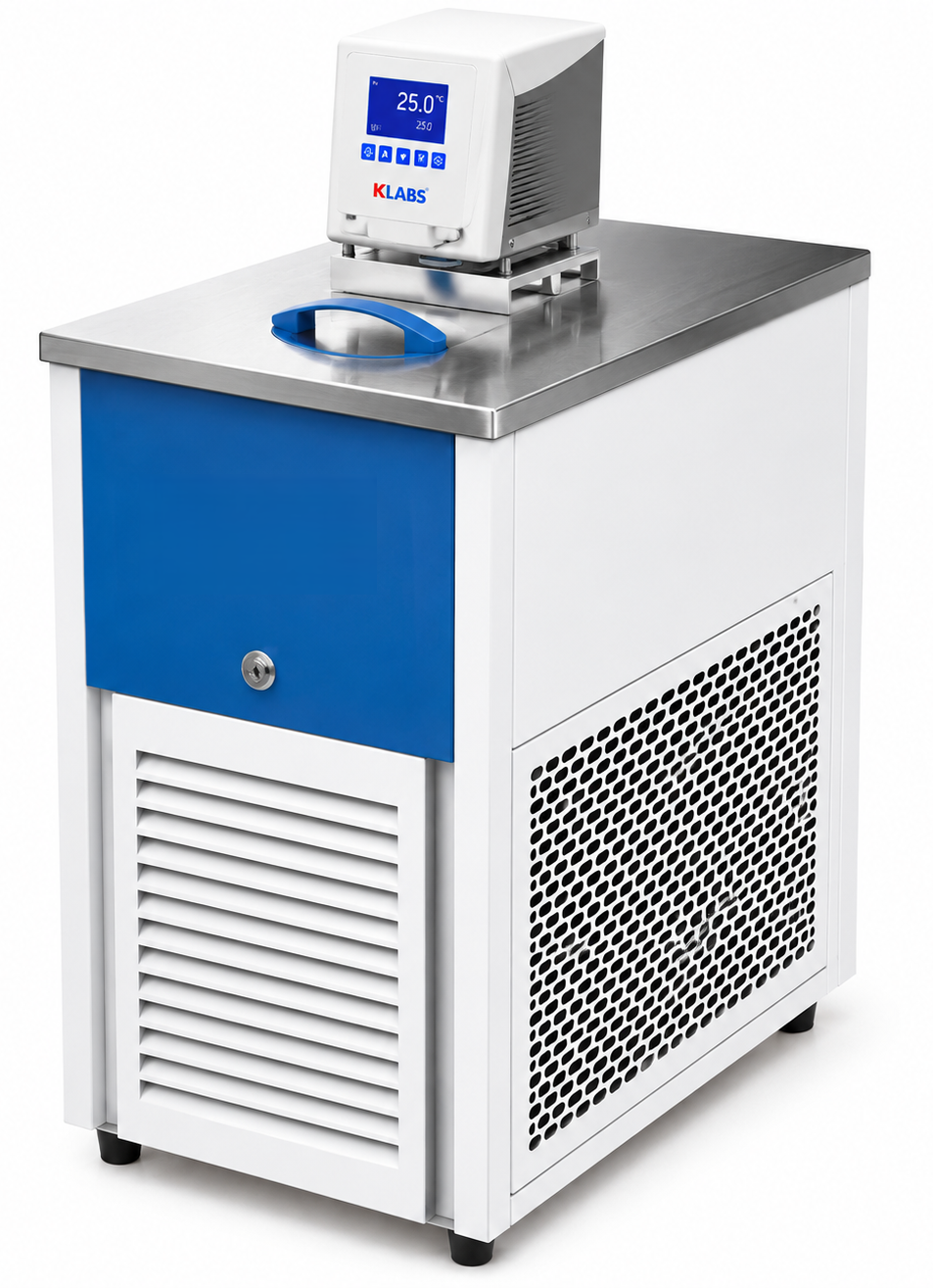

KLABS Circulating Bath (Cooling and Heating)
| Parameter | Specification |
|---|---|
| Product Name | KLABS Circulating Bath (Cooling and Heating) |
| Precision | ±0.2 |
| Liquid Tank Opening / Depth〔mm〕 | 150×160/150, 240×170/200 |
| Power Requirements | AC220V 50HZ |
| LCD Display | Yes |
| Microprocessor Controller | Yes |
| Programmable Steps | 63 Steps |
| Refrigerant | R134a |
| Adjustable Timer | 1 Minute to 5,999 Minutes |
| Bath Chamber Material | Corrosion Resistant Stainless Steel |
| Drain Valve | Yes |
| Audible & Visible Alarm | Yes |
| RS-485 / USB Port | Optional |
| Model Number | Temperature Range | Chamber Volume | Pump (Flux) | Power Consumption |
|---|---|---|---|---|
| KP-05L | -10 – 100℃ | 4.5L | 8L/min | 2300W |
| KP-05A | -20 – 100℃ | 4.5L | 8L/min | 2300W |
| KP-05B | -40 – 100℃ | 4.5L | 8L/min | 3150W |
| KP-13L | -10 – 100℃ | 13L | 8L/min | 2300W |
| KP-13A | -20 – 100℃ | 13L | 8L/min | 2300W |
| KP-13B | -40 – 100℃ | 13L | 8L/min | 3100W |
