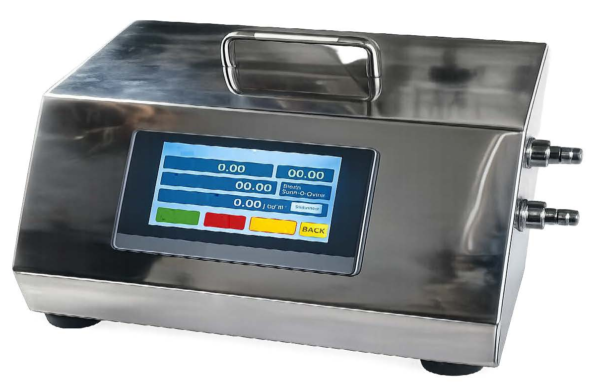

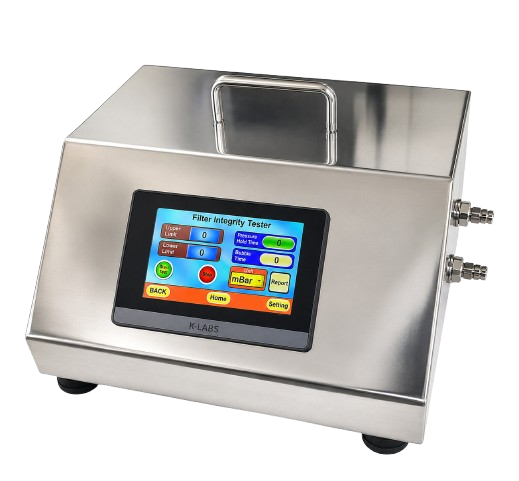

KLABS KABA-2001 Filter Integrity Test System

Original price was: ₹4,534,334.00.Current price is: ₹453,453.00.

Parameter Details
Model KABA-2001
Technology Bubble Point & Pressure Decay
Accuracy ±1% FS
Display 4.5” TFT Touch Screen
Construction SS 316
Compatibility Disc & Cartridge Filters
Connectivity RS-232
Application Filtration Validation

DOWNLOAD MANUAL                                                                             DOWNLOAD CATALOGUE

Description

  • The KLABS FITS – Filter Integrity Test System is a high-performance solution designed for critical filtration validation in pharmaceutical, biotechnology, and laboratory environments. Built with industrial-grade components and intelligent control, it ensures reliable, repeatable, and compliant filter integrity testing.
  • Filter integrity testing is a critical quality assurance step that ensures no leaks or defects in membrane filters, compliance with regulatory standards, consistent filtration performance, and product safety in sterile applications.
  • The system uses Bubble Point Test (BPT) to determine maximum pore size and Pressure Decay Test to measure pressure drop over time and identify leaks or pinholes, making it ideal for routine QC testing.

Reviews

There are no reviews yet.

Be the first to review “KLABS KABA-2001 Filter Integrity Test System”

Your email address will not be published. Required fields are marked *

Additional information

SPECIFICATION

Parameter Specification
Test Range 0 – 6 bar / 0 – 100 psi
Accuracy ±1% Full Scale (FS)
Display 4.5” TFT Touch Screen
Pressure Units PSI / mbar
Power Supply 230 VAC ±10%, 50 Hz
Air Supply Requirement 4 – 6 bar (Oil-free Air / Nitrogen)
Maximum Pressure < 80 psi
Operating Temperature 5 – 40 °C
Humidity ≤ 80% RH (Non-condensing)
Disc Filters 25, 47, 90, 142, 293 mm
Cartridge Filters Standard cartridge filters
Membrane Types PES, PVDF, Nylon, PTFE, MCE
Wetted Parts SS 316
Tubing PU / PTFE
Seals & O-rings Silicone / Viton
Enclosure Stainless Steel
