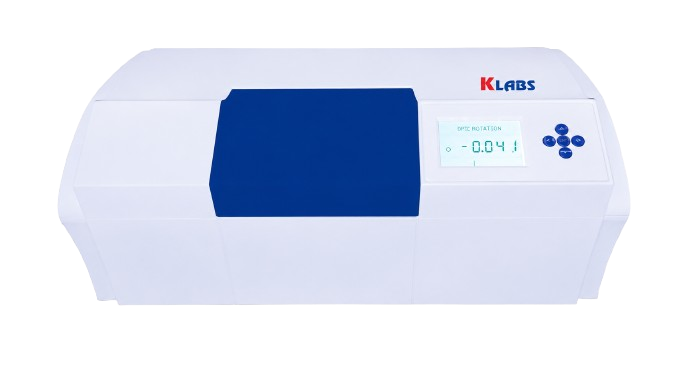

KLABS KDAP-730 Digital Automatic Polarimeter

Original price was: ₹499,999.00.Current price is: ₹399,999.00.

Parameter Specification
Product Name Digital Automatic Polarimeter
Model Number KDAP-730
Test Modes Optical rotation, sugar degree
Light source LED
Wavelength 589.44 nm
Measurement ±45° (optical rotation) ±120°Z (sugar)
Minimum Indicating Value 0.001° (optical rotation) 0.01°Z (sugar)
Accuracy ±(0.01 + measurement value × 0.05)%° Z (optical rotation) ±(0.03 + measurement value × 0.05)%° Z (sugar)
Repeatability <0.002° (optical rotation)
Display LCD
Test Tube 200 mm, 100 mm
Sample Transmittance >1%
Interface RS232
Operation Voltage 220 ± 22V, 50Hz
Overall Dimensions 730 mm × 480 mm × 470 mm
Weight (Gross) 36 kgs
Software Yes

DOWNLOAD CATALOGUE

Description

Product Description

The KLABS KDAP-730 Digital Automatic Polarimeter is a high-precision laboratory instrument designed for fast and accurate measurement of optical rotation and sugar concentration. It incorporates a high-resolution LCD display, precision optical system, and LED light source operating at 589.44 nm to deliver reliable analytical results. The instrument supports both optical rotation and sugar degree measurements with excellent repeatability, RS232 communication, and software compatibility, making it ideal for pharmaceutical, chemical, food, sugar, research, and quality control laboratories. Designed for ease of operation, the instrument provides direct result display with high accuracy and long-term stable performance.


Features

  • • Fast and accurate
  • • High resolution LCD display
  • • Excellent optical system
  • • Direct result
  • • Optical rotation & sugar degree measurement
  • • RS232 connectivity
  • • High repeatability
  • • User-friendly operation
  • • Stable analytical performance
