| Parameter | Specification |
|---|---|
| Product Name | Double Beam UV-Vis Spectrophotometer |
| Model Number | KDBUVS-1100 |
| Function | Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein |
| Wavelength Range | 190 – 1100 nm |
| Spectral Bandwidth | 1.0 nm |
| Optical System | Double Beam, Grating 1200 lines/mm |
| Wavelength Accuracy | ± 0.1 nm |
| Wavelength Repeatability | ± 0.1 nm |
| Scanning Speed | HI, MED & LOW, MAX. 3600 nm/min |
| Photometric Accuracy | ± 0.3 %T or ± 0.002 A/h @1A |
| Photometric Range | %T 0 – 200% |
| Abs : -0.4 to 4A | |
| Conc. : 0 – 9999 | |
| Stray Light | < 0.05 %T @ 220 nm & 340 nm |
| Stability | ± 0.001 A/h @ 500 nm |
| Display | 7 Inches 320 × 240 TFT colored graphical LCD |
| Baseline Flatness | ± 0.001A/h (200 -1000 nm) |
| Sample Compartment | 2 cell holder 10 mm path length (50 mm & 100 mm path-length optional at extra cost) |
| Light Source | Halogen & Deuterium Lamps (Pre-Aligned) |
| Printer Interface | USB drive, USB host and RS 232 |
| Detector | Silicon photodiode |
| PC Connectivity | USB Port for PC connectivity and RS 232 |
| Power | 230 ± 10% AC, 50 Hz |
| Dimensions (L × B × H) | 580 × 500 × 210 mm (Approx.) |
| Weight | 16.0 Kg (Approx.) |
Product Description

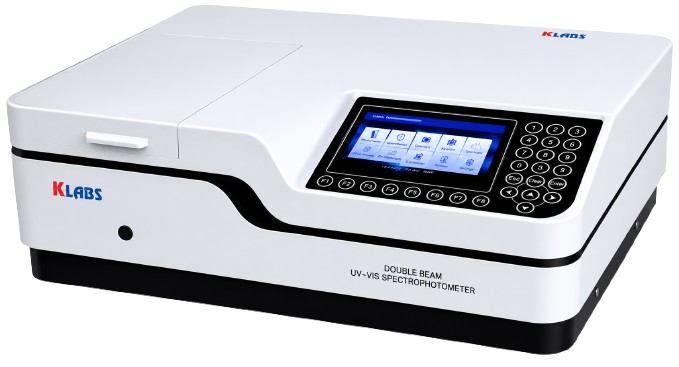

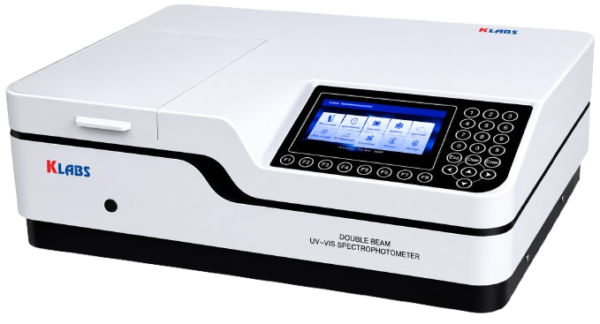

KLABS KDBUVS-1100 Double Beam UV-Vis Spectrophotometer is designed for accurate and reliable spectrophotometric analysis. The system features double beam optics, TFT graphical display, multiple analysis modes and USB connectivity for laboratory, research and quality control applications.
