| Parameter | Specification |
|---|---|
| Product Name | Double Beam UV-Vis Spectrophotometer |
| Model Number | KDBUVS-1100 |
| Function | Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein |
| Wavelength Range | 190 – 1100 nm |
| Spectral Bandwidth | 1.0 nm |
| Optical System | Double Beam, Grating 1200 lines/mm |
| Wavelength Accuracy | ± 0.1 nm |
| Wavelength Repeatability | ± 0.1 nm |
| Scanning Speed | HI, MED & LOW, MAX. 3600 nm/min |
| Photometric Accuracy | ± 0.3 %T or ± 0.002 A/h @1A |
| Photometric Range | %T 0 – 200% |
| Abs : -0.4 to 4A | |
| Conc. : 0 – 9999 C | |
| Stray Light | < 0.05 %T @ 220 nm & 360 nm |
| Stability | ± 0.001 A/h @ 500 nm |
| Display | 10.1 Inches Colored Touch Screen |
| Baseline Flatness | ± 0.001 A/h (200 – 1000 nm) |
| Sample Compartment | 2 cell with automatic cell changer – 10 mm path-length |
| Light Source | Halogen & Deuterium Lamps (Pre-Aligned) |
| Printer Interface | USB drive, USB host and RS232 |
| PC Connectivity | USB PORT FOR PC CONNECTIVITY |
| Detector | Silicon photodiode |
| Power | 230 ± 10% AC, 50 Hz |
| Dimensions (L × B × H) | 810 × 660 × 390 mm (Approx.) |
| Weight | 27.0 Kg (Approx.) |

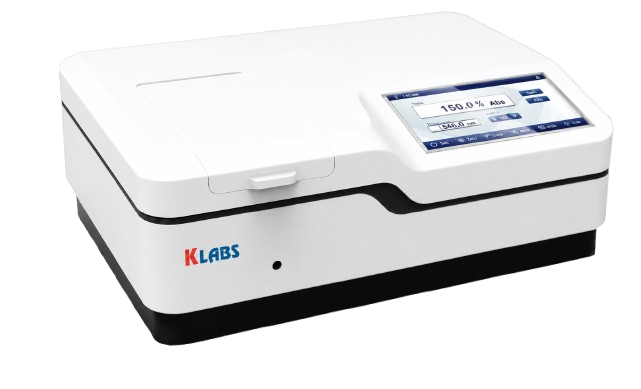

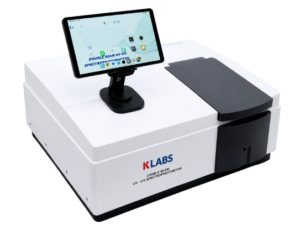

KLABS KDBUVS-1100 Double Beam UV-Vis Spectrophotometer is a high-performance touch-screen spectrophotometer designed for advanced analytical applications. The instrument features double beam optics, 10.1-inch color touch screen, automatic wavelength setting, multiple photometric modes and comprehensive software control for research, pharmaceutical and quality control laboratories.
