KLABS KDHBST-06 Double Head Bursting Strength Tester

Parameter Details
Product Name Double Head Bursting Strength Tester
Model Number KDHBST-06
Capacity for Paper 0–7 kg/cm²
Capacity for Board 0–35 kg/cm²
Pressure Increasing Speed 170 ml/min ± 15 ml/min
Standard Rubber Diaphragm Diameter 76 mm²
Rubber Diaphragm Thickness 2.3 mm ± 0.2 mm
Pressure Gauge Range 0–7, 0–10, 0–21, 0–28, 0–35, 0–40 kg/cm²
Construction Manufactured with high quality materials
Test Principle Bursting strength determination of paper & board by hydraulic pressure method
Pressure Gauge Calibration Statistically and Dynamically Calibrated
Testing Head Configuration Double Head

DOWNLOAD CATALOGUE

Description

Product Description

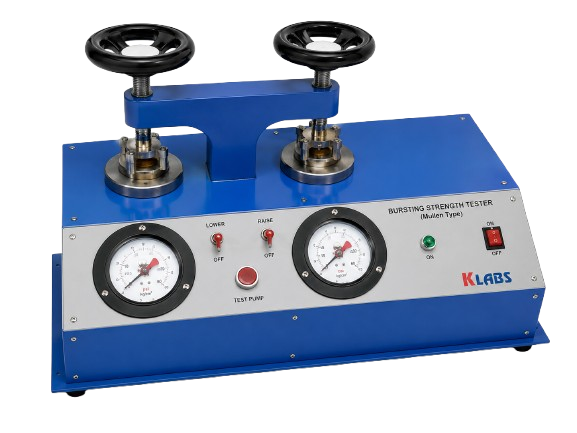

KLABS KDHBST-06 Double Head Bursting Strength Tester is designed for determining the bursting strength of paper, paperboard and packaging materials. The test specimen is securely clamped between the test heads and subjected to increasing hydraulic pressure until rupture occurs. The double-head configuration enables efficient testing and increased productivity. Manufactured using high-quality materials and equipped with statistically and dynamically calibrated pressure gauges, the instrument ensures accurate, reliable and repeatable test results.
