| Parameter | Specification |
|---|---|
| Product Name | Digital Melting Point Apparatus |
| Model No. | KDMPA-300 |
| Display | 4 Digit Seven Segment LED display |
| Temperature | Ambient to 0-300°C |
| Resolution | 1°C |
| Capillary Glass Tube | 100mm long, 0.8 to 1.1 mm Internal diameter |
| Boiling Point | 6x75mm glass tube |
| Sample Size | Fine powder properly dried at a temperature considerably below its melting Mint 4 to 6 mm high |
| Oil-bath | Silicon oil bath – 200 ml capacity with Teflon cover fitted with oil immersion heater. It is having three holes for holding the capillaries, one for boiling point tube and one for thermometer |
| Stirrer Speed Power | Controllable with front knob |
| Power | 230V ± 10% AC,50 Hz |
| Dimension | 365x350x495mm (approx) |
| Weight | 6kg |

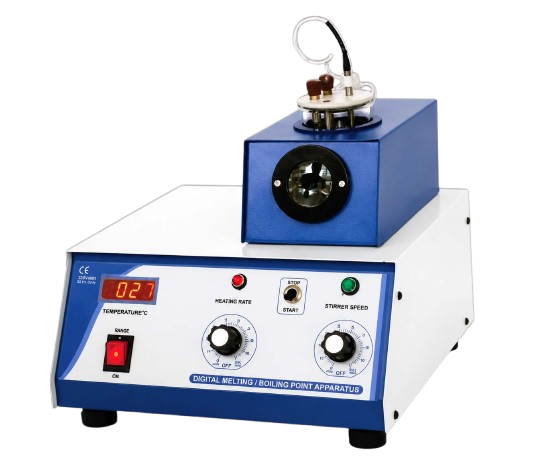

KLABS KDMPA-300 Digital Melting Point Apparatus is a highly accurate and stable instrument designed for determination of melting and boiling points in laboratories. The system features fast heating, uniform inbuilt stirring and excellent viewing angle for reliable sample observation.
