| Specification | Details |
|---|---|
| Product Name | Gel Imaging System |
| Model Number | KGIS-90 |
| Sensor Type | 10.0 MP CMOS |
| Resolution | 3648 × 2736 pixels |
| Pixel Size | 2.4µm x 2.4µm |
| Pixel Density | 16 bit |
| Exposure Time | 0.1 ms – 60 s |
| Camera Sensitivity | ≤10pg EtBr Stained DNA samples |
| Bit Depth & Grayscale Levels | 16-bit Gray & 65536 |
| Exposure Control | Automatic & Manual |
| Frame Rate | Upto 30 fps |
| Image Format | TIFF, JPEG, BMP, PNG |
| Image Processing | Contrast, Brightness, Invert, Saturation |
| Focal Length | 8–12 mm Fixed Focus Lens |
| Emission Filter | UV Blocking / EtBr Filter Available |
| Field of View / Shooting Area | 210 x 260 mm |
| Excitation Source | UV 302 nm / 365 nm |
| White Light Illuminator | Available |
| Display | 20 inch touch screen |
| Interface | 2 x USB, Wi-Fi |
| Gel Cutting | Available |
| Stain Imaging | EtBr, Sybr-Green, Sybr-Safe, Syr-gold, GFP, Gel-red, Gel-Green, FITC, DAP, Pro Q Emerland and sypro-ruby |
| Safety Feature | Auto UV Shut-off |
| Room Construction | Dark Room |
| Power Consumption | 200 W |
| Dimensions (L × W × H) | 55 x 50 x 71 cm |
| Weight | 26 kgs |

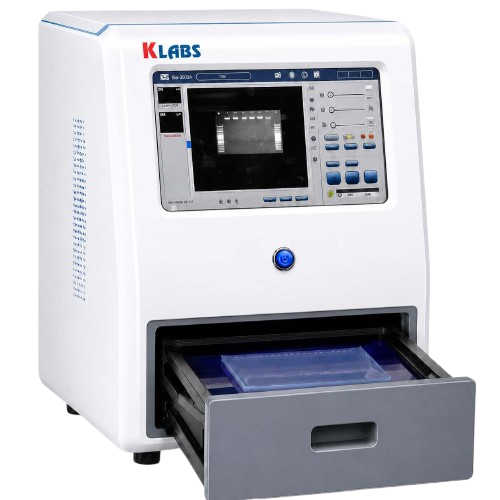

KLABS KGIS-90 Gel Imaging System is designed for clear visualization and documentation of electrophoresis gels. It combines UV illumination, high-resolution imaging and intelligent analysis software for fast and reliable gel documentation.
