| Parameter | Specification |
|---|---|
| Product Name | KLABS HPLC System |
| Model Number | KHPLCS-3202 |
| Flow Range | 0.001 — 9.999 ml/min |
| Delivery method | Double piston (Main & Auxiliary) |
| Pump head | 10ml SST/Peek head |
| Accuracy | ± 1% at 24µl/min, whichever is greater = 1% or ± 1µl/min, whichever is greater (Micro) |
| Flow rate settings | 0 -0.10 ml/min. 0.001 inc. 0.10 – 0.90 ml/min 0.010 inc. 1.0 ml 10.0 ml /Min.+ 0.10 inc |
| Precision | 0.25% from 0.1 ml/min. to 10 ml/min. at 20 deg C |
| Precision (Micro) | 0.25% from 0.05 ml/min. to 4 ml/min. at 20 degrees C (Micro) |
| Pmax | 6000 psi |
| System connections | 1/16″ capillaries |
| Weight | 7.3kg |
| Power input | 85 to 264 VAC, 47 to 63 Hz, 60 Watts |
| Control | Stand alone mode using front panel |
| Parameter | Specification |
|---|---|
| Wavelength | 190-700 nm |
| Spectral bandwidth | 6 nm |
| Wavelength Accuracy | ≤ ± 1 nm |
| Wavelength Reproducibility | ≤ ± 0.5 nm |
| Flow pool volume | 10 µ L |
| Optical path | 10 mm |
| Dynamic Noise | ≤2.5×10 AU (Methanol, 1ml/min 254nm) |
| Static Noise | ≤ ±1 <10-5AU (Empty pool. Response time 1 s) |
| Dynamic Drifting | ≤ ± 2.5×10-4 AU (Methanol, 1ml/min, 254nm) |
| Static Drifting | ≤ ± lx 10-4 AU (Empty pool, Response time 1 s) |
| Qualitative repeatability | RSD ≤0.1% |
| Quantitative repeatability | RSD ≤0.5% |
| Dimensions | 160H × 260W × 350 D. (mm) |
| Weight | 6kg |
| Minimum detection concentration | ≤ 1×10-8g/mL (Naphthalene/Methanol Solution) |

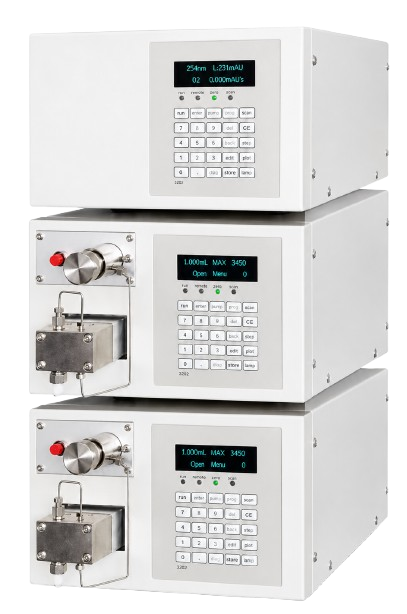

KLABS KHPLCS-3202 HPLC System is a high precision Binary System High Performance Liquid Chromatography instrument designed for analytical and research laboratory applications. The system features programmable pump control, floating plunger seal technology, UV detector system and stand-alone operation for reliable and stable chromatographic analysis.
