| Parameter | Specification |
|---|---|
| Product Name | Microprocessor Melting Boiling Points Apparatus |
| Model Number | KMMBPA-01 |
| Display | 128 × 64 Graphical LCD Display |
| Temperature | Ambient Temp. to 300°C |
| Temperature Resolution | 0.1°C |
| Calibration | Using Software |
| Amount of Sample | Fine powder properly dried at a temperature considerably below its melting point, 4 to 6 mm high |
| Oil Bath | Silicon Oil-bath beaker 200 ml capacity with Teflon cover fitted with oil immersion heater and having three holes for holding the capillaries, one for boiling point tube and one for temperature sensor |
| Power | 230 ± 10% VAC, 50 Hz |
| Storage | 1000 samples result with date, time, sample number and batch number |
| Data Output | Through USB Port |
| Sample Display | Facility to display stored sample results |
| Batch | Facility to enter batch number while storing sample results |
| Stirrer | ON/OFF using key |
| Stirrer Speed | Controllable using stirrer keys |
| Stirrer Indication | Stirrer ON icon appears on the screen when the stirrer is ON. When it is OFF, no icon appears |
| Modes | Three heating modes – Slow Mode, Normal Mode and Rapid Mode |
| Sample Type | Selection for samples whose melting point is known or unknown |
| Dimension | 355 × 340 × 285 mm (approx) |
| Weight | 6 kg |

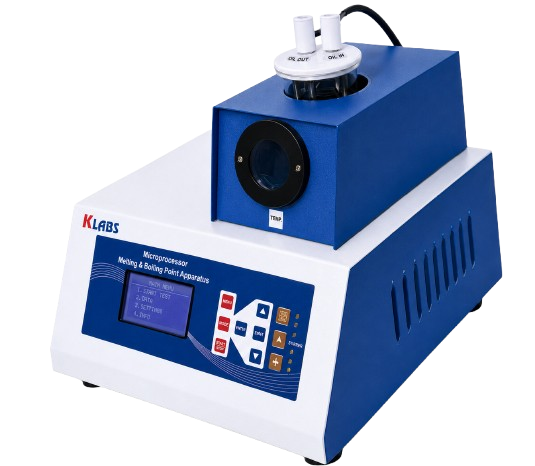

The KLABS KMMBPA-01 Microprocessor Melting Boiling Points Apparatus is a precision laboratory instrument designed for accurate determination of melting and boiling points. It features a graphical LCD display, microprocessor-based control, multiple heating modes, and USB connectivity for efficient laboratory testing.
