| Parameter | DigiPol-M30 | DigiPol-M50 | DigiPol-M70 |
|---|---|---|---|
| Temperature Range | RT -360°C | RT -420°C | RT -360°C |
| Detection Method | Semi-automatic | Semi-automatic | Automatic with manual |
| Test Mode | Melting point | Melting point | Melting point |
| Accuracy | ±0.3°C (<250°C)±0.5°C (>250°C) | ±0.2°C (<250°C)±0.4°C (>250°C) | ±0.3°C (<250°C)±0.5°C (>250°C) |
| Data Storage | 32G | 64G | 32G |
| Graph Save | 200 units | 400 units | 200 units |
| Map | – | – | Any zoom |
| Parameter | DigiPol-M80 | DigiPol-M90 | DigiPol-M130 |
|---|---|---|---|
| Temperature Range | RT -400°C | RT -420°C | RT -420°C |
| Detection Method | Automatic with manual | Automatic with manual | Automatic with manual |
| Test Mode | Melting point | Melting point | Melting / boiling / cloud / slip point |
| Accuracy | ±0.2°C (<250°C)±0.4°C (>250°C) | ±0.2°C (<250°C)±0.4°C (>250°C) | ±0.2°C (<250°C)±0.4°C (>250°C) |
| Data Storage | 64G | 128G | 128G |
| Graph Save | 400 units | 600 units | 600 units |
| Map | Any zoom | Any zoom | Any zoom |
| Large Capillary Size | – | – | OD: Φ4.2mmID: Φ3.8mm |
Common Technical Specifications
| Parameter | Specification |
|---|---|
| Processing Capacity | 4 pcs per batch |
| Temperature Resolution | 0.01°C |
| Heating Rate | 0.1°C–20°C (200 gears, steplessly adjustable) |
| Temperature Control Mode | PID precise temperature control, fully enclosed design of the furnace body |
| Repeatability | Melting point repeatability was ±0.1°C at 0.1°C/Min |
| Magnification | 9 times |
| Display Method | 10.4 inch FTF color touch color screen |
| User Management | YES / Level 4 authority |
| Audit Trails | YES |
| 21 CFR Part 11 | YES |
| Custom Method Libraries | YES |
| Export File Verification MD5 | YES |
| Printing | WIFI, serial port |
| Export Format | PDF & EXCEL |
| Data Interface | USB, RS232, SD, Wi-Fi, RJ45, U disk |
| Small Capillary Size | OD: Φ1.3mm, ID: Φ1.1mm |
| Packing Size | 430 × 320 × 370 mm |
| Power Supply | 110-230V, 50/60Hz, 120W |
| Gross Weight | 6.5kg |

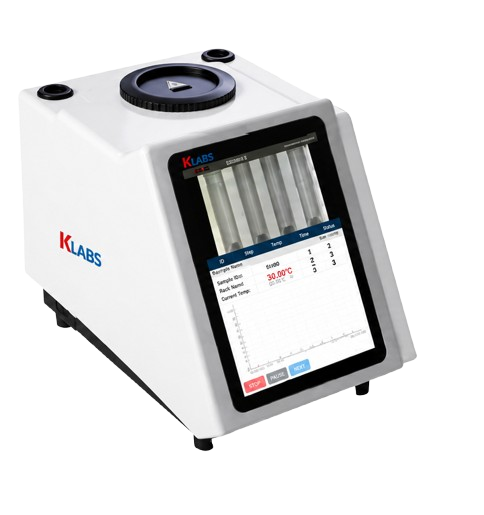

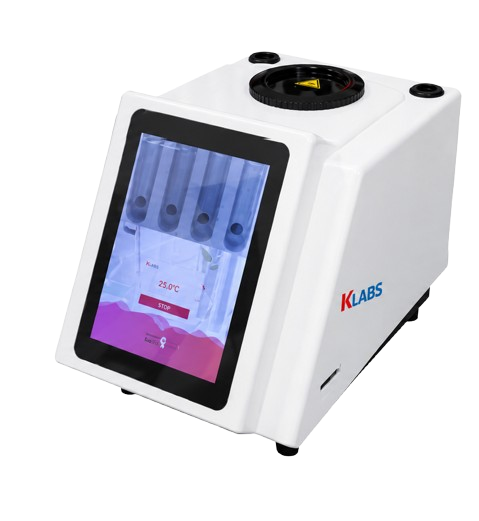

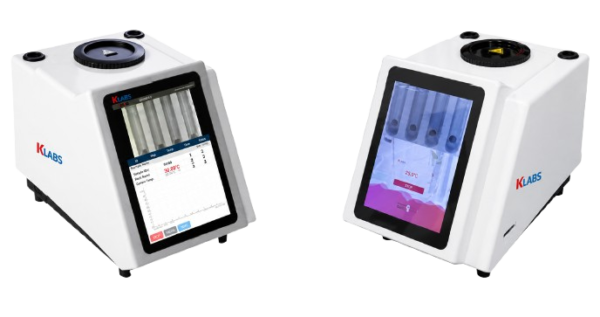

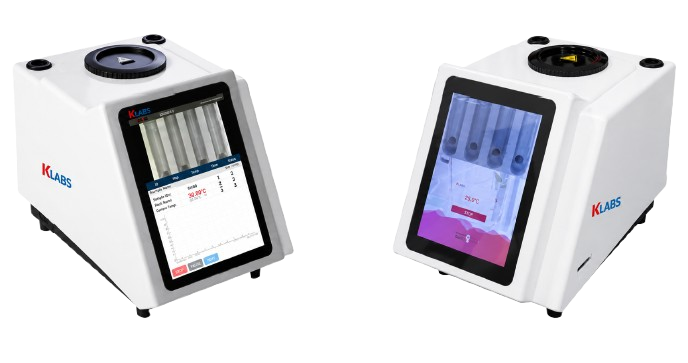

KLABS KMPA-90 Precision Automatic Melting Point Analyzer perfectly combines high-precision temperature control and high-definition video camera technology to provide accurate, stable and reliable melting point determination. The instrument offers automatic real-time sample monitoring, HD video recording, touch-screen operation and compliance with major pharmacopoeias, making it suitable for pharmaceutical, chemical and research laboratories.
