| Parameter | Details |
|---|---|
| Product Name | Single Beam UV-VIS Spectrophotometer |
| Model Number | KSUV-1000 |
| Wavelength Range | 190 – 1000 nm |
| Spectral Bandwidth | 4 nm |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Accuracy | ± 1 nm |
| Wavelength Repeatability | 2.0 nm |
| Wavelength Resolution | 2.0 nm |
| Photometric Accuracy | ± 0.5 %T or 0.003 A @ 1A |
| Photometric Range | -0.3 to 2A, 0 – 200 %T, 0 – 9999 Concentration |
| Stray Light | < 0.3 %T |
| Stability | ± 0.002 A/h @ 500 nm |
| Display | LCD |
| Keyboard | Soft Touch Membrane Keys |
| Photometric Mode | % Transmission, Absorbance and Concentration |
| Detector | Silicon Photodiode |
| Sample Compartment | Standard 4-Position 10 mm Path-Length Cuvette Holder |
| Optional Holder | 50 mm Path-Length Cuvette Holder |
| Light Source | Tungsten and Deuterium Lamps |
| Output | RS232 Port for PC Connectivity and Parallel Port for Dot Matrix Printer |
| Power Supply | 230V ±10%, AC, 50 Hz |

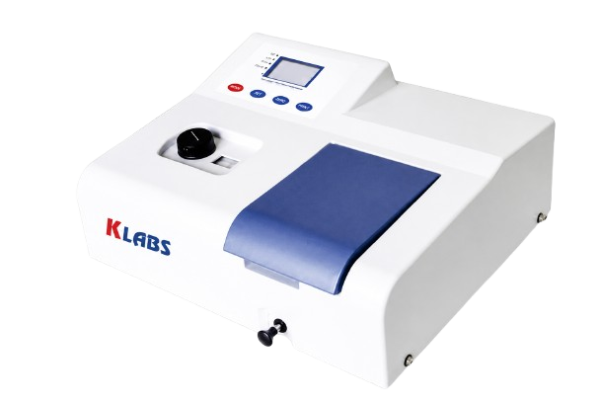

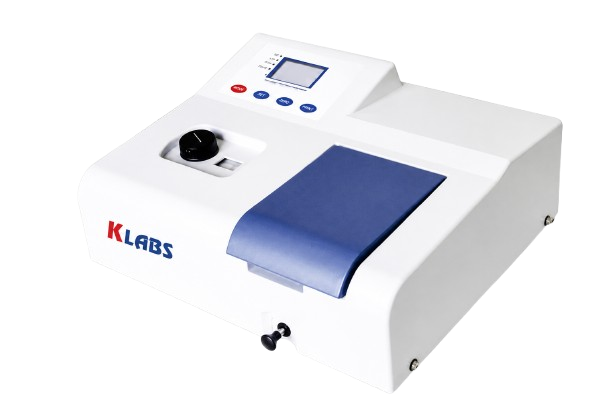

KLABS KSUV-1000 Single Beam UV-VIS Spectrophotometer is a high-performance analytical instrument designed for accurate quantitative and qualitative analysis in UV and Visible regions. The instrument features automatic lamp selection, LCD display, RS-232 computer interface, printer connectivity and a precision optical system to deliver stable, reliable and repeatable results for laboratory applications.
