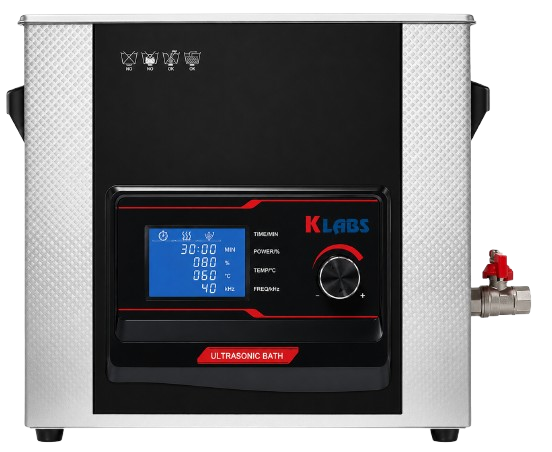

KLABS-KUB-3.2 Ultrasonic Bath

Parameter Specification
Voltage AC110V/220V 50Hz/60Hz
Ultrasonic Frequency 40/80KHz
Ultrasonic power 10%—100%
Timer range 0~99MIN
Heating range 0~100℃
Clean mode Silent, Stard, Degas
Working hours 8 hours
No Model Outer Dimension L×W×H(mm) Tank Dimension L×W×H(mm) Cubage (L) Power (W)
1 KUB-120DM-3.2L 280×170×240 240×140×100 3.2 120
2 KUB-140DM-4.3L 280×170×290 240×140×150 4.3 140
3 KUB-180DM-6.5L 340×180×290 300×155×150 6.5 180
4 KUB-240DM-10L 325×265×290 300×240×150 10 240
5 KUB-280DM-14L 325×265×340 300×240×200 14 280
6 KUB-420DM-20L 354×325×400 330×300×200 20 420
7 KUB-600DM-22L 530×330×355 500×300×150 22 600
8 KUB-800DM-30L 530×330×420 500×300×200 30 800

DOWNLOAD CATALOGUE

Description

Ultrasonic cleaner is based on cavitation effect caused by high frequency ultrasonic sound vibrations in liquid, vacuum are formed in the liquid and the steam or air enters the vacuum make it produces millions of tiny bubbles that implode violently by the alternating high and low pressure waves generated by high frequency ultrasonic sound. Collapse of millions of tiny bubbles brings great impact (about 100 atmospheric pressures) to the surface of the object you are cleaning. The dirty are emulsified and removed thoroughly and consistently.

As one of the principal applications of ultrasonic wave, the ultrasonic cleaner has a strong dirt-removing capacity and offers wonderful cleaning effect. Ultrasonic cleaner has been widely used to clean optical instrument parts, timepiece parts, mini-bearing, electrical vacuum units, semi-conductor devices, missile guidance system, part from filament drawing membranes, spinning nozzle for the chemical fiber production, medical syringe needle, oiler throttle nozzle, etc. besides the usage for high quality cleaning, ultrasonic cleaner is also used to perform ultrasonic pulverization, debarring, emulsification, mixing, removing of oxidized iron covering, acceleration to chemical reaction, etc
