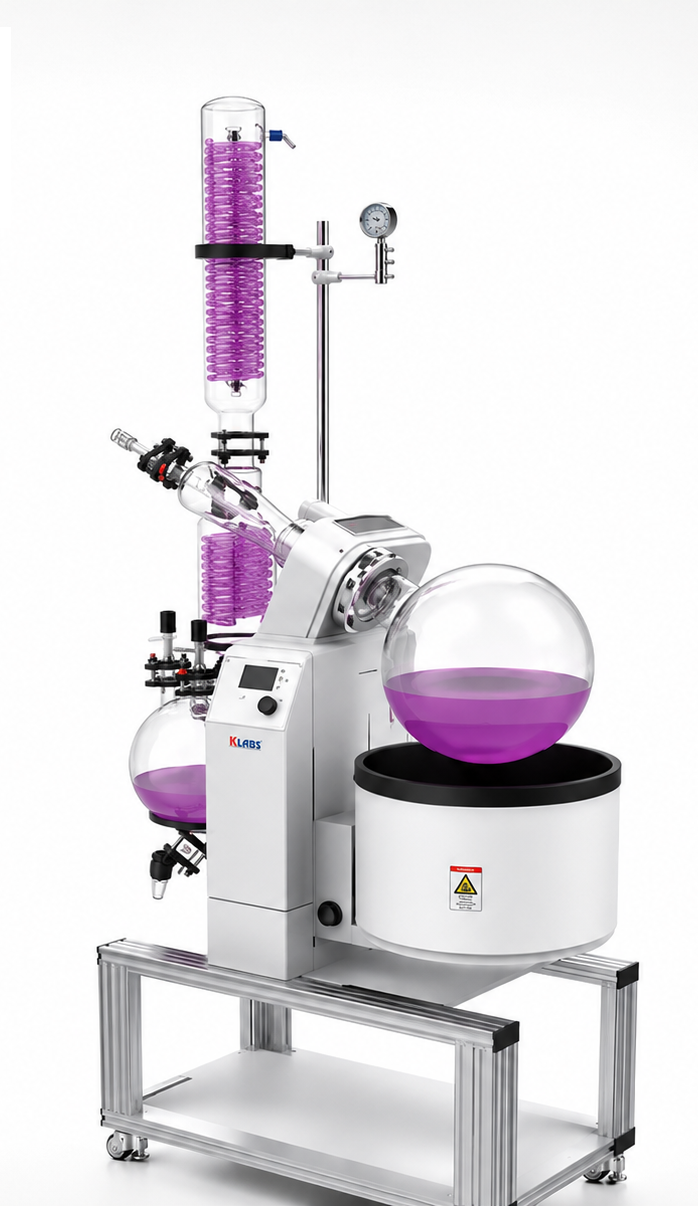

KLABS Rotary Evaporator – Large Capacity

KLABS Rotary Evaporator – Large Capacity

Parameters Specifications
Rotation Speed 20 – 140 rpm (Model dependent)
Evaporation Rate Up to 9 L/h
Ultimate Vacuum Degree 8 mbar
Temperature Range Water: RT+5 – 99°C
Optional Oil Bath Temperature RT+5 – 180°C
Temperature Stability ±1°C
Controller PID Controller
Display LCD Screen
Lift Mode Motorized Lift
Sealing System PTFE & Teflon Coated
Water Bath Material SS304 with PTFE Coated
Power Supply 220V, 50Hz
Ambient Temperature 10 – 35°C
Safety Features Over current protection, Over temperature protection, Anti-dry protection
Parameters KV-5A KV-10A KV-20A KV-50A
Size 5L 10L 20L 50L
Rotation Speed (rpm) 20 – 140 20 – 130 20 – 130 20 – 110
Evaporation Rate (Max. L/h) 2 3.5 4 9
Ultimate Vacuum Degree 8 mbar 8 mbar 8 mbar 8 mbar
Temperature Stability ±1°C ±1°C ±1°C ±1°C
Power (W) 2300 3300 4300 5300
Condensation Area (m²) 0.28 0.49 1.29 1.75
Rotary Bottle Capacity 5L 10L 20L 50L
Collecting Bottle Capacity 3L 5L 10L 20L
Lifting Distance (mm) 150 170 170 260
Exterior Dimension W×D×H (mm) 860 × 410 × 1120 1100 × 540 × 2060 1200 × 570 × 2060 1300 × 610 × 2150

DOWNLOAD CATALOGUE

Download Catalog
Category: Brand:

Description

KLABS Large Capacity Rotary Evaporators are designed for efficient solvent evaporation, concentration, distillation, recovery, and purification applications in laboratories, pharmaceutical industries, chemical processing units, research institutes, and pilot plants. The system offers stable rotation, precise temperature control, excellent vacuum performance, and high evaporation efficiency.

The equipment is engineered with a durable aluminum alloy structure, PTFE-coated components, LCD controller, motorized lift mechanism, and safety protection systems for reliable long-term operation.
