| Technical Specifications |
KBC-3S1 |
KBC-4S1 |
KBC-5S1 |
KBC-6S1 |
| Product Name |
Biological Safety Cabinet |
Biological Safety Cabinet |
Biological Safety Cabinet |
Biological Safety Cabinet |
| Internal Dimensions (W×D×H) mm |
920×580×655 |
1220×580×655 |
1520×580×655 |
1820×580×655 |
| External Dimensions (W×D×H) mm |
1040×810×2100 |
1340×810×2100 |
1640×810×2100 |
1940×810×2100 |
| Downflow Velocity |
0.33m/s |
| Inflow Velocity |
0.53m/s |
| Working Access Opening Height |
200mm |
| Opening MAX. |
500mm |

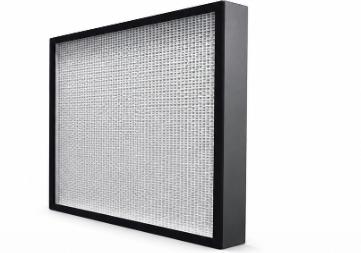

| HEPA Filter Typical Efficiency |
99.995% @ 0.3μm |
| Noise |
<65dB |
| Fluorescent Lamp Intensity |
>900Lux |
| UV Lamp |
20W |
30W |
40W |
40W |
| Voltage |
220V/50Hz |
| Power Consumption |
1300VA |
1400VA |
1500VA |
1600VA |
| Net Weight |
225kg |
265kg |
305kg |
345kg |
| Shipping Weight |
295kg |
335kg |
395kg |
445kg |
| Shipping Dimensions (W×D×H) mm |
1210×935×1870 |
1510×935×1810 |
1810×935×1810 |
2110×935×1810 |
