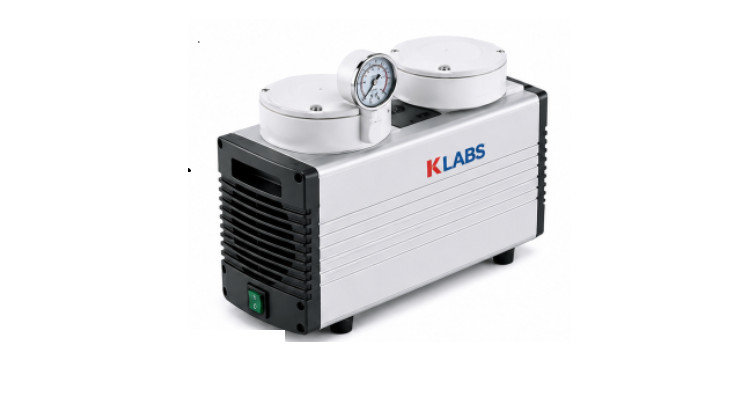

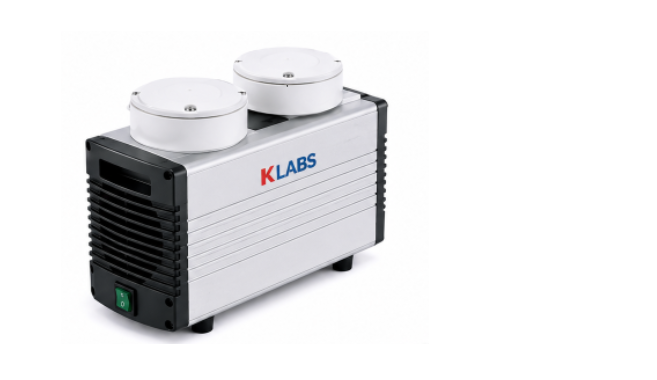

KLABS Diaphragm Vacuum Pump Anticorrosion

Parameter Specification
Product Type Diaphragm Vacuum Pump Anticorrosion
Pump Head Type Two-Stage Pump
Ultimate Vacuum 8 mbar
Maximum Operating Pressure 1 bar
Pump Head Material PTFE
Composite Diaphragm Material PTFE
Valve Material FFPM
Working System Continuous Working
Environmental Relative Humidity <80% RH
Medium & Ambient Temperature 5°C ~ 40°C
Speed 1450 RPM
Electrical Requirement AC 220V / 50Hz
Model Flow Rate Power Consumption Dimensions (W×D×H) mm
KV-20 20 L/min 120W 165 × 315 × 210
KV-40 35 L/min 240W 170 × 330 × 210
KV-65 65 L/min 400W 240 × 290 × 355
KV-135 125 L/min 600W 380 × 300 × 200
KV-20F 20 L/min 120W 175 × 315 × 275
KV-40F 35 L/min 240W 180 × 330 × 275

DOWNLOAD CATALOGUE

Download Catalog
Categories: , Brand:

Description

Product Description

The KLABS Diaphragm Vacuum Pump Anticorrosion Series is a high-performance oil-free vacuum pumping solution specially designed for chemical, pharmaceutical, petrochemical, food analysis, biochemical, and laboratory applications involving corrosive gases and vapors.

The pump utilizes PTFE contact materials and corrosion-resistant construction to ensure excellent chemical resistance and maintenance-free operation. The dry oil-free design eliminates environmental contamination while providing low noise, low vibration, and reliable continuous-duty performance.
