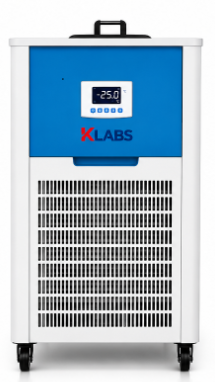

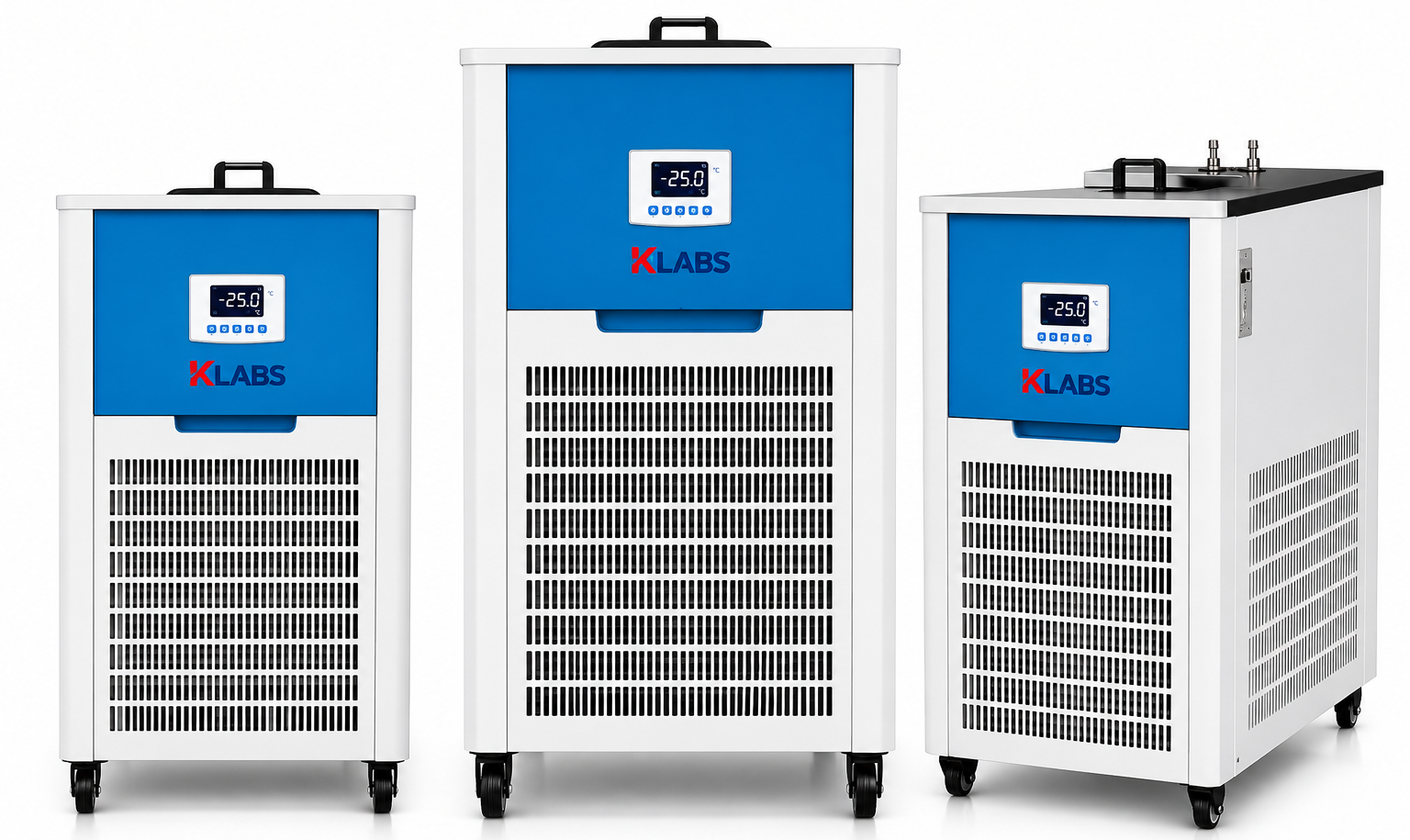

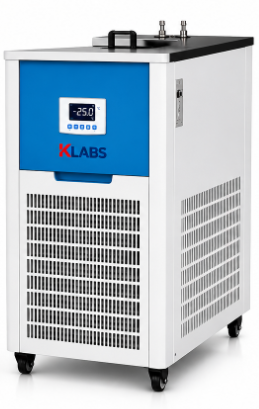

KLABS Recirculating Chiller

Parameter Cooling Recirculating Chiller Cooling & Heating Recirculating Chiller
Temperature Range -20°C to 20°C -20°C to 80°C
Temperature Accuracy ±2°C ±0.5°C
Cooling Capacity at 10°C 530W to 4000W 530W to 4000W
Refrigerant R404A / R410A R404A / R410A
Storage Tank Capacity 5L to 62L 5L to 62L
Pump Flow Max. 6 to 30 L/min 6 to 30 L/min
Maximum Head 9m to 25m 9m to 25m
Inlet / Outlet Pipe Diameter φ10 / φ12 mm φ10 / φ12 mm
Noise Level ≤45dB to ≤75dB ≤45dB to ≤75dB
Total Power 550W to 2400W 1100W to 4300W
Power Requirement AC220V / 50Hz AC220V / 50Hz
Tank Material Corrosion Resistant Stainless Steel Corrosion Resistant Stainless Steel
Controller PID Temperature Controller PID Temperature Controller
Display Large LCD Display Large LCD Display
Timer Function 1 to 5999 Minutes 1 to 5999 Minutes
Safety Features Over Current, Leakage & Overvoltage Protection Over Current, Leakage & Overvoltage Protection
Optional Interface RS-485 / USB RS-485 / USB
Cooling Recirculating Chiller Cooling & Heating Recirculating Chiller
KR-03 KR-03H
KR-05 BR-05H
KR-10 KR-10H
KR-20 KR-20H
KR-50 KR-50H

DOWNLOAD CATALOGUE

Download Catalog
Categories: , Brand:

Description

Product Description

The KLABS Recirculating Chiller Series is designed for precise temperature control applications in laboratories, research facilities, pharmaceutical industries, material testing, rotary evaporators, corrosion testing, tissue research, and industrial cooling processes.

The system features PID temperature control, LCD display, corrosion-resistant stainless steel bath chamber, programmable settings, independent circulation control, and advanced safety protections for reliable long-term operation. The chiller series is available in both cooling-only and cooling-heating configurations for a wide range of laboratory applications.
