| Technical Parameter | Specification |
|---|---|
| Product Name | Double Beam UV-Vis Spectrophotometer (Xenon Lamp) |
| Model Number | KDBS-190 |
| Function | Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein |
| Wavelength Range | 190 – 1100 nm |
| Spectral Bandwidth | 1 nm |
| Optical System | Double Beam, Grating 1200 lines/mm |
| Wavelength Accuracy | ± 0.1 nm |
| Wavelength Repeatability | ± 0.1 nm |
| Scanning Speed | HI, MED & LOW, MAX. 3600 nm/min |
| Photometric Accuracy | ± 0.3 %T or ± 0.002 A @1A |
| Photometric Range | %T: 0 – 200%; Abs: -0.4 to 4 A; Conc.: 0 – 9999 C |
| Stray Light | ≤ 0.03 %T @ 220 nm & 360 nm |
| Stability | ± 0.001 A/h @ 500 nm |
| Display | 7 Inches TFT Colored Screen |
| Baseline Flatness | ± 0.001A/h (200 -1000 nm) |
| Sample Compartment | 2 cell holder-10 mm path-length |
| Light Source | Xenon Lamp |
| Printer Interface | USB DRIVE, USB HOST & Rs232 |
| PC Connectivity | USB PORT FOR PC CONNECTIVITY |
| Detector | Imported Silicon photodiode |
| Power | 230 ± 10% AC, 50 Hz |
| Dimensions (L × B × H) | 810 × 660 × 390 mm (Approx.) |
| Weight | 27.0 Kg (Approx.) |

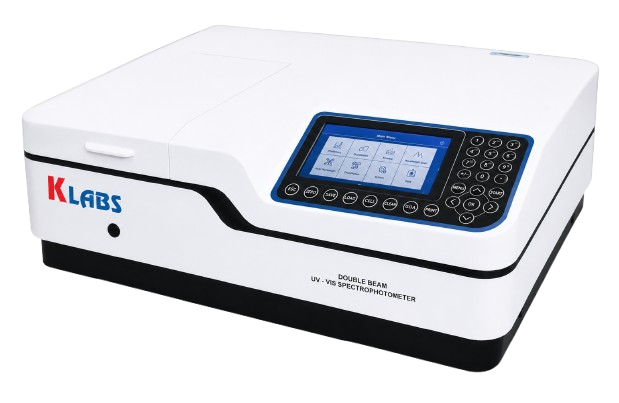

KLABS Double Beam UV-Vis Spectrophotometer (Xenon Lamp) is a high-performance analytical instrument designed for accurate absorbance and transmittance measurements. It features a long-life Xenon lamp, double beam optical system, and advanced software for reliable laboratory analysis.
