| Parameter | Details |
|---|---|
| Product Name | Double Beam UV-VIS Spectrophotometer |
| Model Number | KDUV-1100 |
| Function | Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein |
| Wavelength Range | 190 – 1100 nm |
| Spectral Bandwidth | 1.0 nm |
| Optical System | Double Beam, Grating 1200 lines/mm |
| Wavelength Accuracy | ±0.1 nm |
| Wavelength Repeatability | ±0.1 nm |
| Scanning Speed | HI, MED & LOW, Max. 3600 nm/min |
| Photometric Accuracy | ±0.3 %T or ±0.002 A @1A |
| Photometric Range | %T: 0–200%, Abs: -0.4 to 4A, Conc: 0–9999 |
| Stray Light | <0.05 %T @ 220 nm & 360 nm |
| Stability | ±0.001 A/h @ 500 nm |
| Display | 7 Inch TFT Color Screen |
| Baseline Flatness | ±0.001 A/h (200–1000 nm) |
| Sample Compartment | Automatic 8 Cell Changer, 10 mm Path Length |
| Light Source | Halogen & Deuterium Lamps (Pre-Aligned) |
| Printer Interface | USB Drive, USB Host & RS232 |
| Detector | Silicon Photodiode |
| Power Supply | 230V ±10%, AC, 50 Hz |
| Dimensions (L × B × H) | 810 × 660 × 390 mm (Approx.) |
| Weight | 27.0 kg (Approx.) |

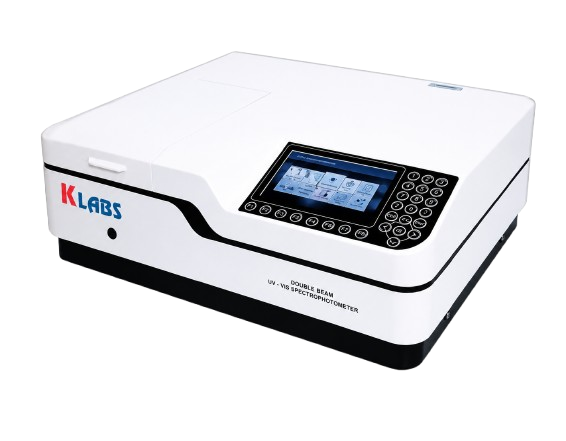

KLABS KDUV-1100 Double Beam UV-VIS Spectrophotometer is a high-performance analytical instrument designed for advanced quantitative and qualitative analysis. Featuring double beam optics, 7-inch TFT color display, automatic 8-cell changer, kinetic analysis and DNA/Protein measurement modes, it delivers exceptional accuracy, stability and operational convenience for research and quality control laboratories.
