| Parameter | Specification |
|---|---|
| Product Name | KLABS Digital Flame Photometer |
| Model Number | KDFP-100 |
| Display | Dual 2½ digit bright red LED displays |
| Accuracy | ± 2% up to 100 meq, ± 2% up to 40 ppm ± 5% above 100 meq, ±5% above 40 ppm |
| Ignition System | In-built electronic ignition by press of a knob |
| Dimensions | 375 X 245 X 220 mm (Approx.) |
| Weight | 8 Kg. (Approx.) |
| Measurement Systems | simultaneous measurement of 2 elements on dual LED display |
| Repeatability | ± 2 Counts |
| Detector | Silicon Photodiode |
| Filters | Narrow band interference glass filters (Na, K Filters are Supplied, Ca & Li filters are optional at extra cost) |
| Atomizer | Block burner, axial flow type |
| Flame System | LPG and dry oil free air |
| Warm Up Time | 10 minutes |
| Compressor Unit | Supplied along with the instrument |
| Gas control | Adjustable with knob |
| Flame system | LPG and dry Oil free air |
| Dimension | 365x245x220mm (approx) |
| Weight | 8kg |
| Power | 230V ±10% AC, 50Hz |

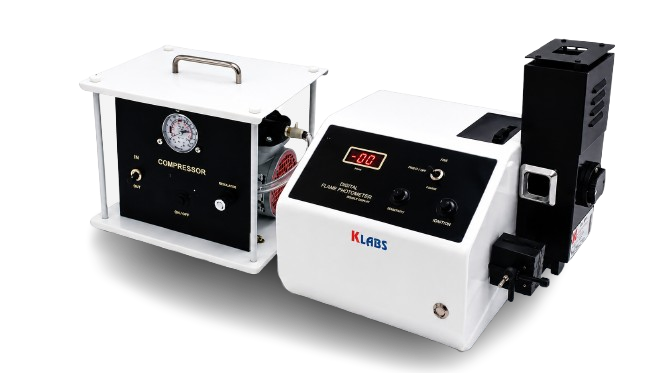

KLABS KDFP-100 Digital Flame Photometer is designed for accurate and stable analysis of alkali and alkaline earth metals in laboratory applications. The system features dual LED display, stainless steel round burner, concentric non-corrosive nebulizer and stable flame operation for reliable laboratory performance.
