| Technical | Specification |
|---|---|
| Product Name | KLABS Flame Photometer with Inbuilt Printer |
| Model Number | KLABS KMFP-672 |
| Sensitivity | General Mode : Na: 0.5 ppm, K: 0.5 ppm, Li: 0.5 ppm, Ca:15 ppm Ba: 30ppm |
| Filters | Na & K Supplied (Ca, Li & Ba are optional extra cost) optional filter are factory fitted only. |
| Resolution | 0.1 ppm / 0.1 meq. |
| Reproducibility | < 1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as Maximum Standard up to 3% CV for 20 consecutive samples of Concentrations between 50 to 199 ppm for Barium. |
| Linearity | < 2% error when 3 ppm Na/K and 5 ppm Li are set as Maximum Std. |
| Curve Fit Accuracy | ± 2% of FS |
| Display | 128 x 64 Graphical LCD |
| Average Time | In-built in Software |
| Flame System | LPG & Dry Oil Free Air |
| Detector | Photodiode |
| Calibration | with up to 25 Standards of user choice with curve fitting software (5 for each Element). Multiple Calibration Curves can be stored in the memory |
| Gas Control | Adjustable with knob |
| Flame Failure | Auto Detection |
| Gas Cut off | Automatic |
| Ignition System | Auto Ignition |
| Atomiser | Axial Flow Type |
| Dimensions | Instrument : 365 x 245 x 220 mm Approx. (LxBxH) |
| Printer | Provision for attachment of Dot-Matrix Printer with centronics parallel interface |
| PC Interface | USB |
| Power Supply | 230V ±10% at 50Hz |
| Weight | Main Unit : 8 Kg. (Approx.) |
| Dimension | 365x245x220mm (approx) |

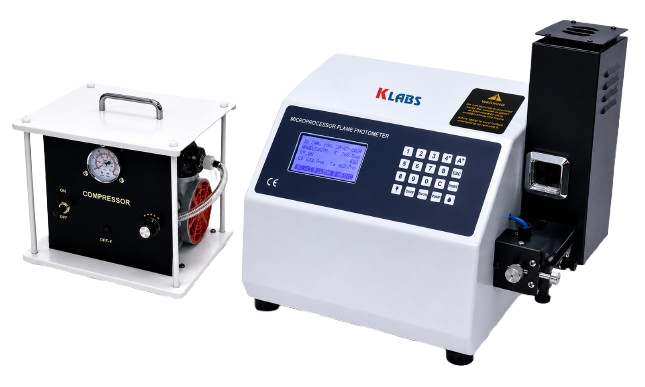

KLABS KMFP-672 Flame Photometer with Inbuilt Printer is a high performance microprocessor based analytical instrument designed for precise measurement of alkali and alkaline earth metals. The instrument is equipped with graphical LCD display, automatic gas safety system, inbuilt printer support and USB connectivity for reliable laboratory performance.
