| Parameter | Details |
|---|---|
| Product Name | FT-IR Spectrophotometer |
| Model Number | KFTIR-4100 |
| Wave Number Range | 7800 – 375 cm⁻¹ |
| Interferometer | Michelson Interferometer with 30° Incidence Angle |
| 100% Line Tilt Range | Better than 0.5% (2200–1900 cm⁻¹) |
| Resolution | 1 cm⁻¹ |
| Wave Number Repeatability | 1 cm⁻¹ |
| Wave Number Accuracy | 0.01 cm⁻¹ |
| Signal to Noise Ratio | 30000:1 (DLATGS, Resolution @ 4 cm⁻¹) |
| Detector | High Resolution DLATGS Detector with Moisture Proof Coating |
| Beam Splitter | KBr Coated with Ge (Made in USA) |
| Light Source | Long Life Air-Cooled IR Light Source (Made in USA) |
| Electronic System | 24 Bit A/D Converter at 500 MHz |
| Interface | USB 2.0 |
| Power Supply | 110–220V AC, 50–60 Hz |
| Dimensions | 450 × 350 × 235 mm |
| Weight | 14 kg |

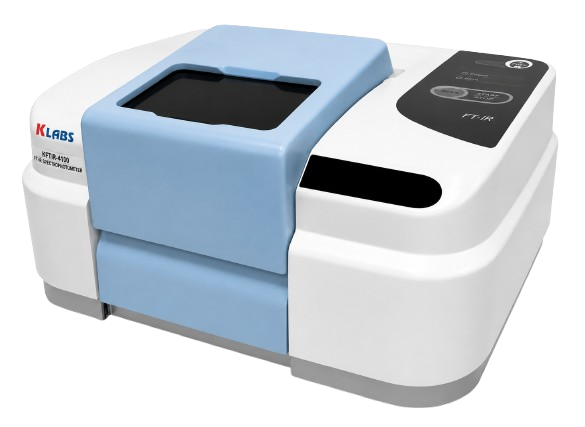

KLABS KFTIR-4100 FT-IR Spectrophotometer is a high-performance Fourier Transform Infrared Spectrometer designed for qualitative and quantitative analysis of solids, liquids and gases. The instrument features a sealed optical system, humidity monitoring display, intelligent software and high signal-to-noise performance, making it suitable for research, pharmaceutical, chemical and quality control laboratories.
