| Parameter | Details |
|---|---|
| Product Name | Bio Nano Spectrophotometer |
| Model Number | KBNS-800 |
| Minimum Sample Size | 0.5 µL – 2 µL (2 µL Recommended) |
| Path Length | 0.2 mm or 1 mm |
| Light Source / Life | Xenon Flash Lamp / >10⁹ Flashes |
| Detector Type | 3864-Element Linear Silicon CCD Array |
| Wavelength Range | 200 – 800 nm |
| Wavelength Accuracy | ±1 nm (TWHM at Hg 253.7 nm) |
| Spectral Resolution | ≤3 nm (FWHM @ Hg 253.7 nm) |
| Absorbance Precision | 0.003 Abs (1 mm Path Length) |
| Absorbance Accuracy | ±1% (7.332 Abs at 260 nm) |
| Absorbance Range | 0.04 – 90 Abs (at 260 nm wavelength, 10 mm equivalent) |
| Detection Concentration Range | 2 ng/µL dsDNA – 4500 ng/µL dsDNA |
| Detection Time | <10 Seconds |
| Input Voltage | DC 24V, 2A |
| Power Consumption | 20W |
| Dimensions (W × D × H) | 200 × 250 × 166 mm |

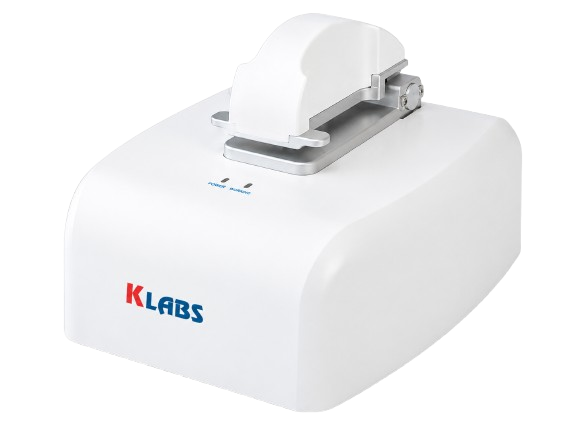

KLABS KBNS-800 Bio Nano Spectrophotometer is a compact, high-performance micro-volume spectrophotometer designed for rapid nucleic acid and protein quantification. The instrument utilizes a long-life Xenon flash lamp and advanced CCD detector technology to deliver highly accurate and stable measurements using sample volumes as low as 0.5 µL.
