| Parameter | Specification |
|---|---|
| Product Name | Microprocessor Dissolution Test Apparatus |
| Model Number | KMDTA-200 |
| Stations | 8 Basket |
| Display | Graphical LCD display |
| Keyboard | 19 soft touch membrane type keys |
| LED’s | 6 LED’s, 3 LED’s for Test status like Run, Alarm, End and 2 LED’s for Platform up/down status and one for heater ON/OFF status |
| Prog. Mode | Routine, Sustain and Control mode |
| Storage Facility | 20 different test setups available in Routine and Sustain mode |
| Printer | Provision for attachment of dot-matrix printer with centronics parallel port interface available |
| Speed | 25 – 200 RPM, ± 1 RPM |
| Resolution | 1 RPM |
| Accuracy | ± 1 RPM |
| Temperature Range | 30 to 50°C |
| Temperature Accuracy | ± 1°C |
| Temp. Control | Microprocessor Based using Pt100 / Semiconductor Sensor |
| Reaction Vessel | 1000 ml jars with stirrer pedals and baskets |
| Heater | 1 KW |
| Power | 230 V ± 10%, 50 Hz AC |
Product Description

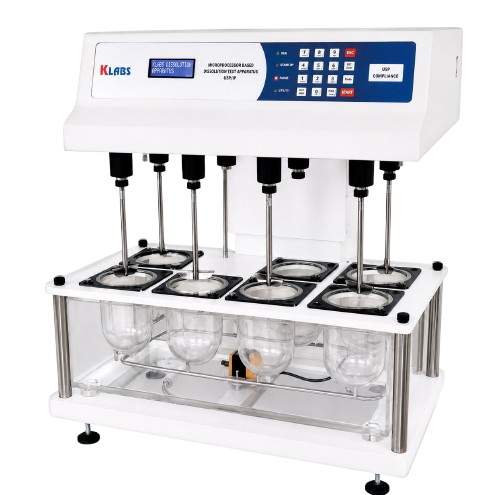

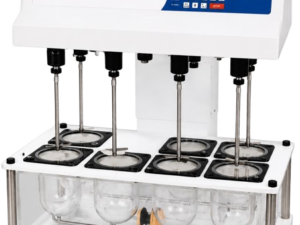

KLABS KMDTA-200 Microprocessor Dissolution Test Apparatus is designed for pharmaceutical dissolution testing applications. The system features 8 basket stations, microprocessor control, graphical LCD display, programmable operation modes and storage facility for accurate and reliable dissolution testing.
