| Technical Specifications | Details |
|---|---|
| Product Name | Microprocessor Dissolution Test Apparatus |
| Model No. | KMDTA-6 |
| Stations | 6 Basket |
| Display | Graphical LCD display |
| Keyboard | 19 soft touch membrane type keys |
| LED’s | 6 LED’s, 3 LED’s for Test status like Run, Alarm, End and 2 LED’s for Platform up/down status and one for heater ON/OFF status. |
| Prog. Mode | Routine, Sustain and Control mode. Facility for 20 different test setups available in Routine and Sustain mode. |
| Printer | Provision for the attachment of dot-matrix printer with centronics parallel port interface available. |
| Speed | 25 – 200 RPM, ± 1 RPM |
| Resolution | 1 RPM |
| Accuracy | ± 1 RPM |
| Range | 30 to 50°C |
| Accuracy | ± 1°C |
| Temp. Control | Microprocessor Based using Pt100/ Semiconductor Sensor |
| Reaction Vessel | 1000 ml jars with stirrer pedals and baskets |
| Heater | 1 KW |
| Power | 230 V ± 10%, 50 Hz. AC |
Product Description

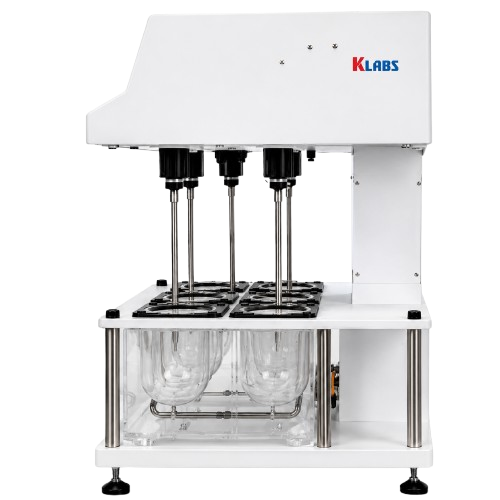

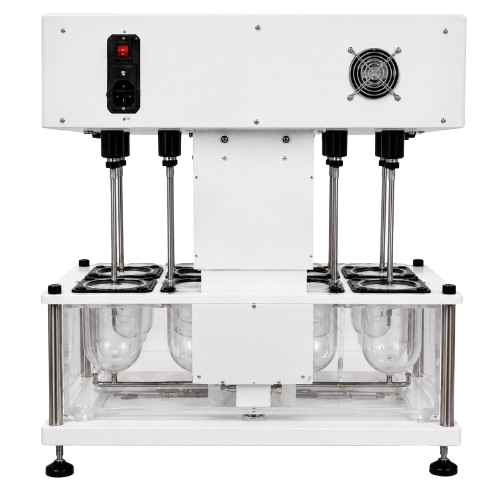

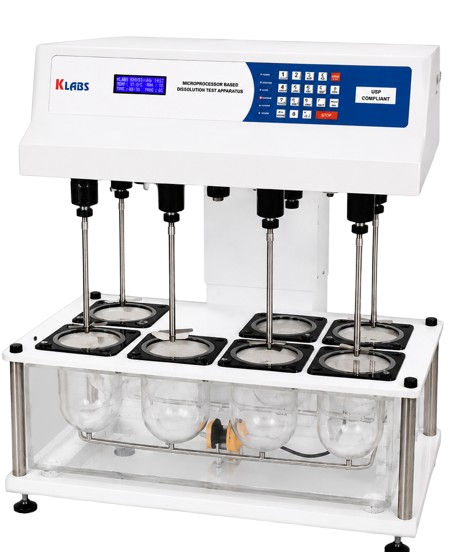

KLABS KMDTA-6 Microprocessor Dissolution Test Apparatus is designed for accurate and reliable dissolution testing in pharmaceutical laboratories. The system features microprocessor-based control, graphical LCD display, programmable operation modes, and compliance with USP/IP specifications.
