₹5,000.00
| Vacuum Oven | Pump Model | Flow | Time |
|---|---|---|---|
| KV-20 | VRD-8 | 2L/S | 1 min |
| KV-50 | VRD-8 | 2L/S | 1 min |
| KV-90 | VRD-16 | 4L/S | 2 min |
| KV-120 | VRD-16 | 4L/S | 3 min |
| KV-210 | VRD-24 | 6L/S | 4 min |
| Technical parameters | VRD-4 | VRD-8 | VRD-16 | VRD-24 |
|---|---|---|---|---|
| Displacement speed 50Hz m3/h(L/s) | 4(1.1) | 8(2.2) | 16(4.4) | 24(6.6) |
| Displacement speed 60Hz m3/h(L/s) | 4.8(1.3) | 9.6(2.6) | 19.2(5.2) | 28.8(7.9) |
| Ultimate partial pressure gas ballast close | 5×10⁻² Pa | 5×10⁻² Pa | 4×10⁻² Pa | 4×10⁻² Pa |
| Ultimate total pressure gas ballast close | 5×10⁻¹ Pa | 5×10⁻¹ Pa | 4×10⁻¹ Pa | 4×10⁻¹ Pa |
| Ultimate total pressure gas ballast open | 10 Pa | 10 Pa | 8×10⁻¹ Pa | 8×10⁻¹ Pa |
| Power supply | colspan=”4″ Single / Three-Ph | |||
| Power rating | 0.4/0.37kW | 0.4/0.37kW | 0.55kW | 0.75kW |
| Level of protection | colspan=”4″ IP44 | |||
| Intake and exhaust | KF16/25 | KF16/25 | KF25 | KF25/40 |
| Oil capacity | 0.6 – 1.0L | 0.6 – 1.0L | 0.9 – 1.5L | 1.3 – 2.0L |
| Motor speed (50/60Hz) | colspan=”4″ 1440 / 1720 rpm | |||
| Ambient temperature | colspan=”4″ 10 – 40℃ | |||
| Noise level (50Hz) | ≤52dB | ≤52dB | ≤58dB | ≤58dB |
| Weight | 19kg | 21kg | 30kg | 35kg |
| Dimension (L×W×H) mm | 440×144×217 | 440×144×217 | 530×188×272 | 567×188×272 |

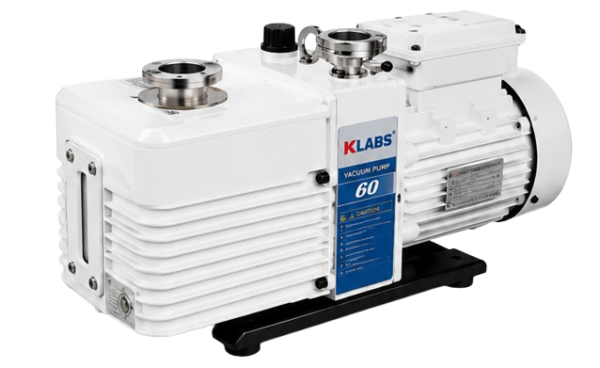

KLABS Vacuum Pump is a high-performance two-stage rotary vacuum pump specially designed for laboratory vacuum applications, vacuum ovens, drying systems, degassing processes, chemical processing, pharmaceutical industries, and scientific research laboratories.
| Model Number | VRD-4, VRD-8, VRD-16, VRD-24 |
|---|
