| Parameter | Unit | SVP300 |
|---|---|---|
| Nominal Speed | m³/hr | 300 |
| Ultimate Total Pressure (Gas Ballast Closed Position) | mbar | 8 × 10⁻² |
| Ultimate Total Pressure (Gas Ballast Open Position) | mbar | 0.7 |
| Water Vapor Tolerance | mbar | 6 |
| Pump Rotational Speed at No Load Condition | RPM | 1440 |
| Noise Level | dB(A) | 70 |
| Protection Class | — | IP-55F |
| Leak Rate | mbar·l/s | ≤ 1.1 × 10⁻³ |
| Motor Rating | kW | 5.5 |
| Weight with Motor (Without Oil Filling) | KGS | 174 |
| Inlet – Outlet Connection | Inch | 2″ – 2″ |
| Oil Level Max. | Liter | 8.5 / 11 |
| Recommended Oil | Precise | PVO100 – Double Distilled Vacuum Pump Oil |
| Motor Power | — | 3Ph, 415V, 50Hz |
| Ambient Temperature | °C | 12–40 |
| Dimensions (L × W × H) | mm | 916 × 570 × 429 |

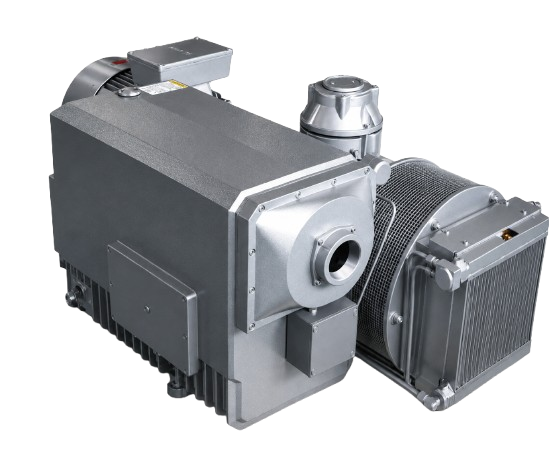

The SVP300 Oil Lubricated Single Stage Vacuum Pump is designed for reliable and efficient vacuum generation in laboratories and industrial applications. Its robust construction, low noise operation, and stable vacuum performance ensure long service life and dependable operation.
