KLABS KAES-200 Automotive Endoscope
-10%

KLABS KAES-200 Automotive Endoscope

Original price was: ₹50,000.00.Current price is: ₹45,000.00.

Parameter Details
Product Name Automotive Endoscope
Model KAES-200
Brand KLABS
Display 3.5 Inch TFT
Camera 690,000 Pixel
Bending Angle 210°
Articulation 360°
Output HDMI
Operation Handheld
Application Industrial & Automotive

DOWNLOAD CATALOGUE

Download Catalog
Categories: , Brand:

Description

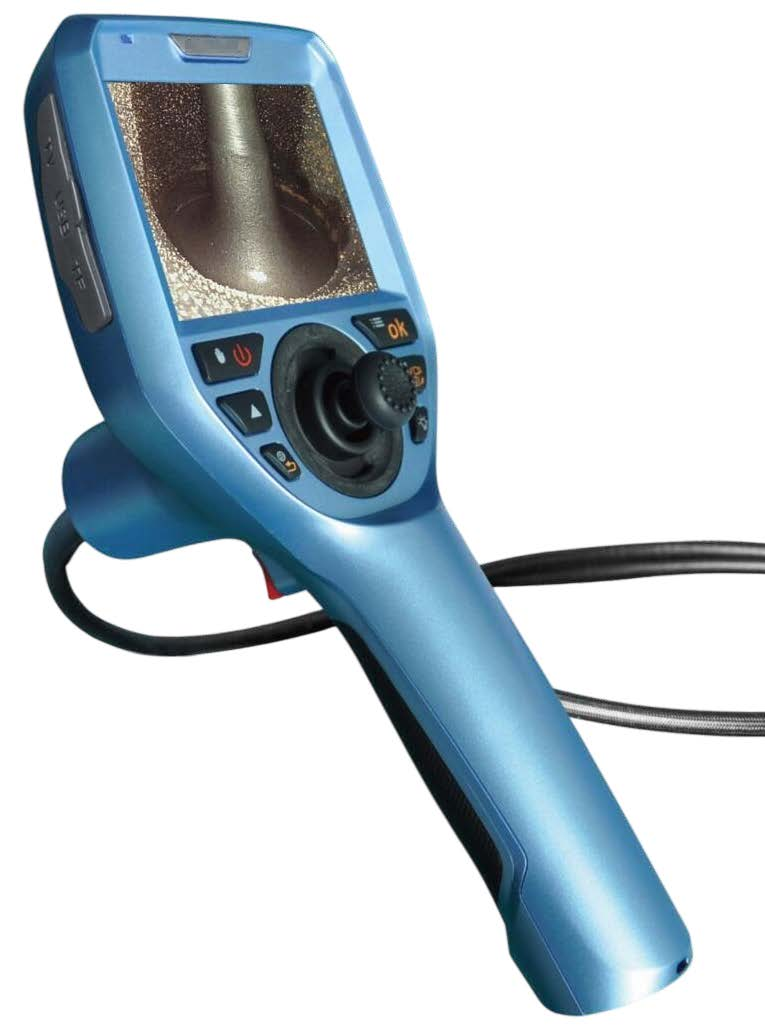

  • KLABS Automotive Endoscope KAES-200 is a high-performance inspection device designed for precise visualization of internal and hard-to-reach areas. It is equipped with an ultra high definition camera capable of capturing both images and videos with clear inspection quality.
  • The system features a 3.5-inch TFT daylight display and a 690,000 pixel Ultra HD camera that ensures smooth static and dynamic imaging. It supports real-time image capture during video recording, storing images in BMP/JPEG format and videos in MP4 format.
  • The probe offers a maximum bending angle of 210° along with mechanical 360° articulation, allowing direct inspection without the need for repositioning. It is constructed with a tungsten alloy insertion tube and titanium alloy probe, providing excellent resistance against oil, corrosion, and water.
  • With HDMI output for large screen display, high-temperature operation capability (up to 200°C optional), and ergonomic single-hand operation, the device is ideal for automotive, industrial, and maintenance inspection applications.

Reviews

There are no reviews yet.

Be the first to review “KLABS KAES-200 Automotive Endoscope”

Your email address will not be published. Required fields are marked *

Additional information

Specification

Parameter Specification
Product Name Automotive Endoscope
Model KAES-200
Brand / Make KLABS
Integrated Design Probe, Screen, Insert tube, Handle, Battery and other integrated handheld design
Compatibility Replicable consumable tungsten insertion tubes
Tube Length 1m
Probe Control Mechanical 360° all-way articulation
Bending Angle Maximum 210°
Illumination Type Front LED light guiding (LED life ≥30,000 hours)
Illuminance Maximum 20,000 lx
Brightness Level Manual 7-level adjustment
White Balance Automatic white balance with central focus photometry
Display 3.5 inch TFT daylight display
Image Resolution 960×720
Photo / Video Yes
Document Format Image: BMP / JPEG ; Video: MP4
Image Preview List preview / full screen / time watermarking
Memory 8GB TF card (supports up to 32GB)
Equipment Durability Buffer protection device for main engine connection
Insertion Tube Oil resistant and anti-corrosion
Optional Cooling equipment
Menu Language Multi-language support
Probe Diameter φ6±0.1 mm
Pixels 690,000 pixels
Digital Zoom 4x real-time / 8x playback zoom
Probe Material Titanium alloy protective shell
Depth of Field 25–100 mm
Field of View 85°
Visible Direction Front
Host Weight ≤0.45 kg
Waterproof Host IP55, Probe IP67
Output Port HDMI
Power 18650 rechargeable lithium battery
Voltage DC 4.2V
Operating Time ≥4 hours
Operating Temperature -10 ~ 50°C
Tip Temperature -20 ~ 60°C
Storage Temperature -20 ~ 60°C
Relative Humidity 15% ~ 90%
