KLABS KAVB-3000 Articulating Video Boroscope

Original price was: ₹500,000.00.Current price is: ₹190,000.00.

Parameter Details
Product Name Articulating Video Boroscope
Model KAVB-3000
Brand KLABS
Display 5 Inch LCD
Probe Diameter 6.35 mm
Probe Length 1 Meter
Articulation 2-Way
Steering Angle Up to 210°
Waterproof IP67
Battery 3000 mAh Lithium

DOWNLOAD CATALOGUE

Description

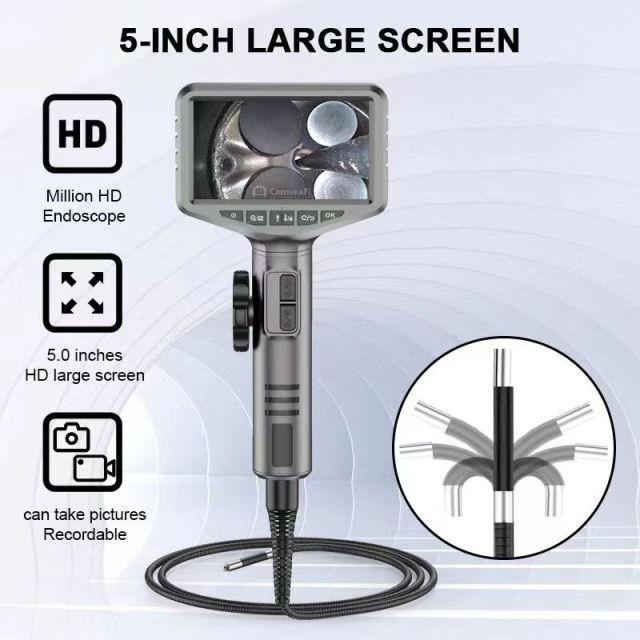

  • KLABS Articulating Video Boroscope KAVB-3000 is a high-definition industrial inspection device designed for precise visualization of internal and hard-to-reach areas. It features a 5-inch LCD monitor that delivers clear static and dynamic images with sharp resolution, making it suitable for professional inspection applications.

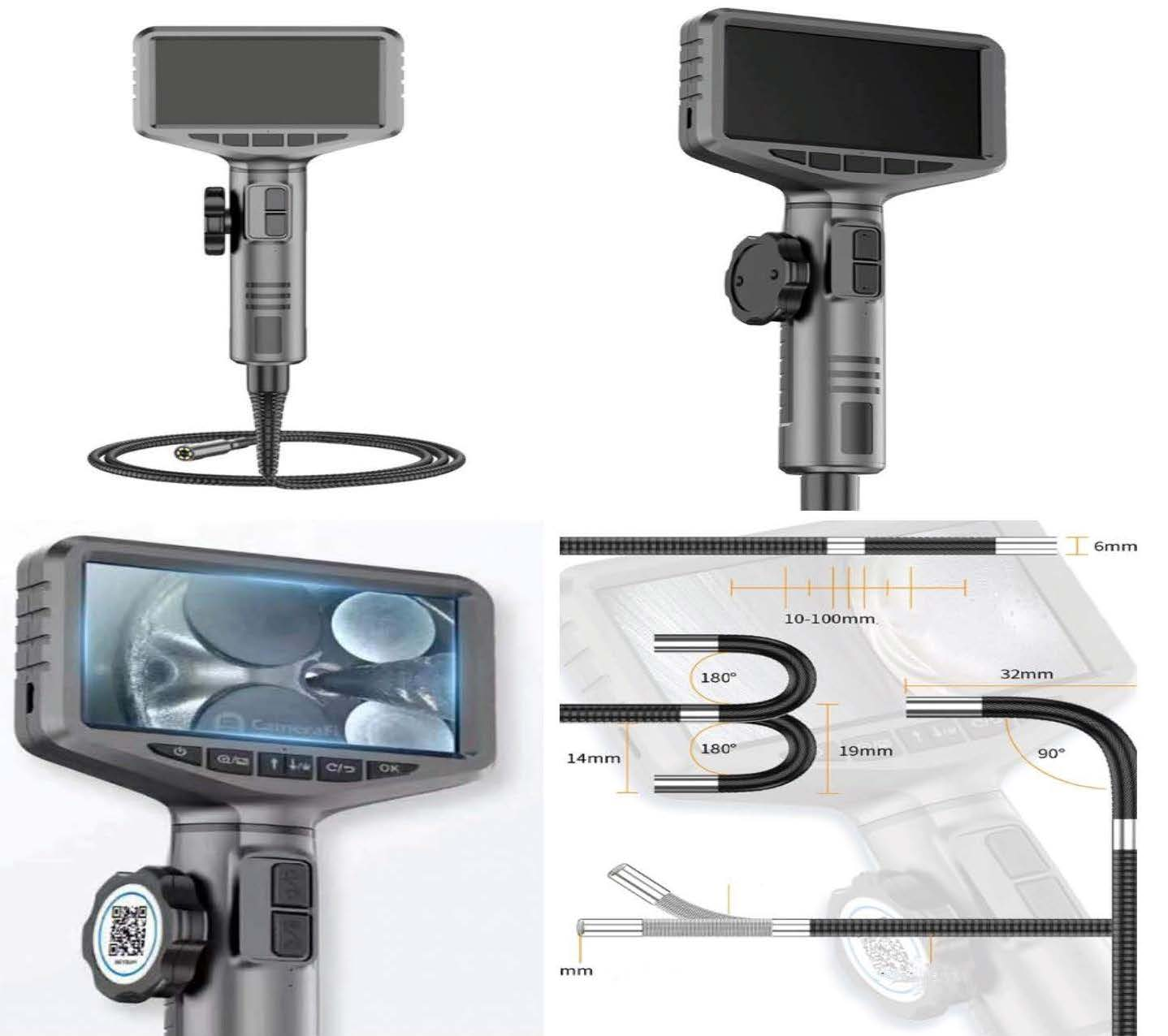

  • The device is equipped with a durable wear-resistant metal camera tube and a semi-rigid probe of 6.35 mm diameter, allowing easy navigation through narrow and curved spaces. With a focal length range of 20–100 mm, it provides accurate and detailed inspection results.
  • It supports 2-way articulation with a steering angle up to 210°, enabling flexible viewing angles. The boroscope is IP67 rated waterproof and can operate underwater up to 1 meter depth. Powered by a 3000 mAh lithium battery, it offers 3–4 hours of continuous operation.
  • Its handheld integrated design ensures portability and ease of use, making it ideal for industrial, mechanical, and maintenance inspection tasks.

Reviews

There are no reviews yet.

Be the first to review “KLABS KAVB-3000 Articulating Video Boroscope”

Your email address will not be published. Required fields are marked *

Additional information

Specification

Parameter Specification
Product Name Articulating Video Boroscope
Model KAVB-3000
Brand / Make KLABS
Monitor Size 5 Inches
Sensor (CCD/CMOS) size 1/16 inch
Resolution 200 Million
Dia of Camera 6.35mm (6 LED’S)
Probe length 1 Meter (3.28ft)
Material of Probe High Temperature With Smart Protection Semi-Rigid
Material of Camera Wear Resistant Metal Camera Tube
Depth of field 20mm – 100mm
Viewing Angle 70°
Tip articulation 2-way Articulated
Steering Angle Up to 210°
Bending Radius 35 mm
SD Card capacity 16GB (standard), Max 64GB
Waterproof standard IP67
Battery Type 3000 mAh Lithium battery (3–4 hours)
