| Parameter | Specification |
|---|---|
| Product Name | Microprocessor Spectrophotometer |
| Model Number | KMPS-1100 |
| Wavelength Range | 320 – 1100 nm |
| Spectral Bandwidth | 2 nm |
| Optical System | Single Beam, grating 1200 lines/mm |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | ±0.3 nm |
| Wavelength Resolution | 0.1 nm |
| Photometric Accuracy | ±0.3 %T or 0.003 A @1A |
| Photometric Range | -0.3 to 3A, 0–200%T, 0–9999 conc. |
| Photometric Repeatability | ±0.2 %T |
| Stray Light | <0.3%T |
| Stability | ±0.002A/h @500nm |
| Display | 128 × 64 Dots Large Graphical LCD |
| Photometric Mode | % Transmission, Absorbance and Concentration |
| Keyboard | Soft Touch Membrane Keys |
| Sample Compartment | Standard 4-Position 10 mm path-length cuvette holder |
| Sample Compartment | Accommodates up to 50 mm path-length cuvette with optional holder |
| Light Source | Tungsten Lamps |
| Detector | Silicon Photodiode |
| Output | USB for PC Connectivity and Parallel Port for Dot Matrix Printer |
| PC Software | PC Software provided for quantitative/kinetic analysis |
| PC Software | Additional wavelength scan and DNA/Protein Test |
| Power | 230 V ±10%, AC, 50 Hz |
Product Description

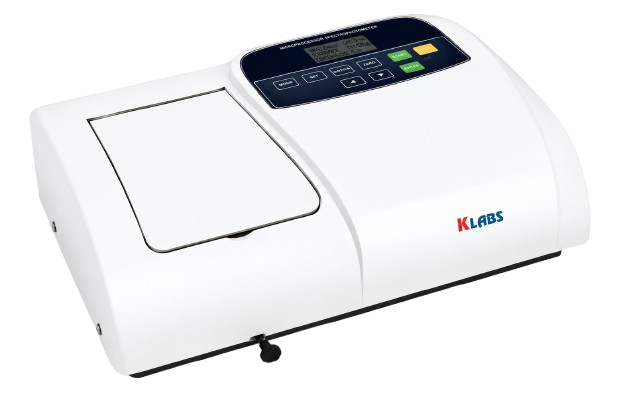

KLABS KMPS-1100 Microprocessor Spectrophotometer is an advanced scanning-based spectrophotometer designed for accurate and reliable analysis. The instrument features microprocessor-controlled wavelength selection, graphical LCD display, USB connectivity and versatile photometric measurement modes for laboratory, research and quality control applications
